Bottom Pouring Sets
Complete refractory sets for ingot casting: trumpets, centre blocks, runner bricks, nozzles and sleeves, made to your plate layout and mould sizes.
01
Cast the trumpet
Steel is teemed into the trumpet at the centre of the plate.
02
Split the flow
The centre block distributes the stream into the runner channels.
03
Fill from below
Runner bricks and nozzles feed each mould from the bottom, so the metal rises calmly and stays clean.

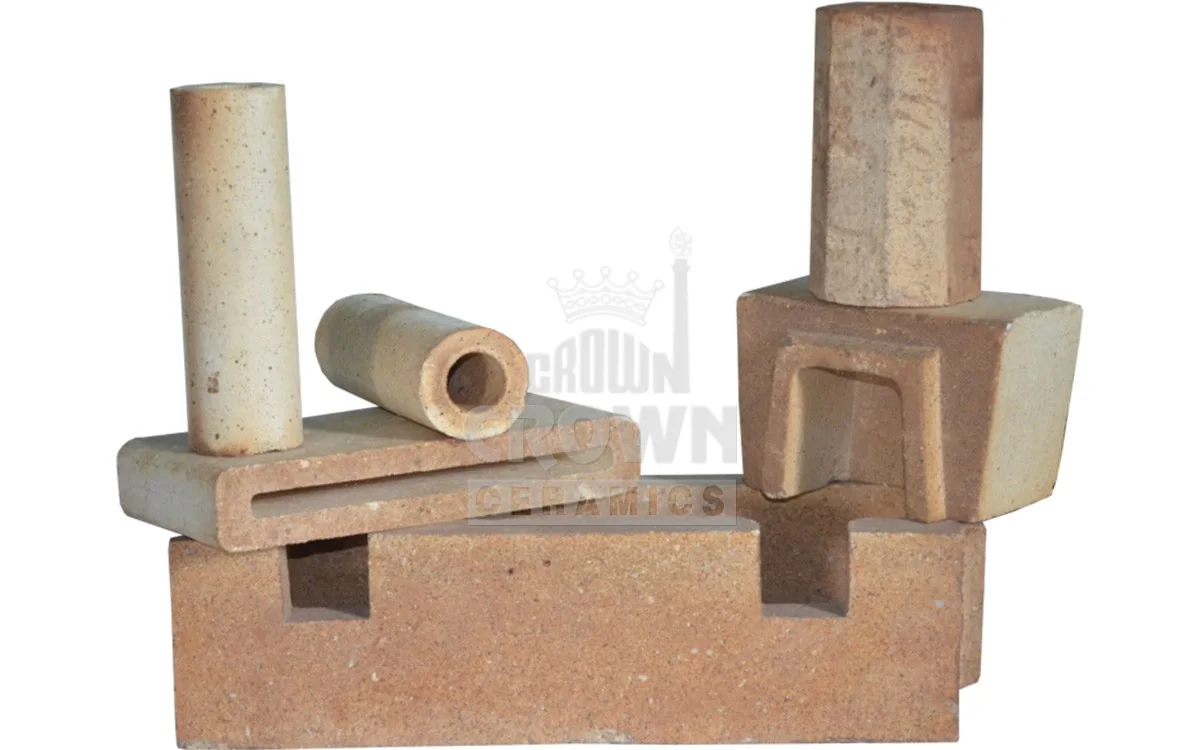

Complete sets
A set, not a shopping list.
We supply the whole pouring assembly to one drawing, so every joint lines up on site and the bores match through the run.
01Accurate boresSmooth, dimensionally consistent channels so the stream does not choke or erode.
02Clean steelBottom pouring fills the mould from below, cutting splash and reoxidation.
03Complete setsTrumpet, centre block, runners, nozzles and sleeves supplied together, matched to your plate layout.

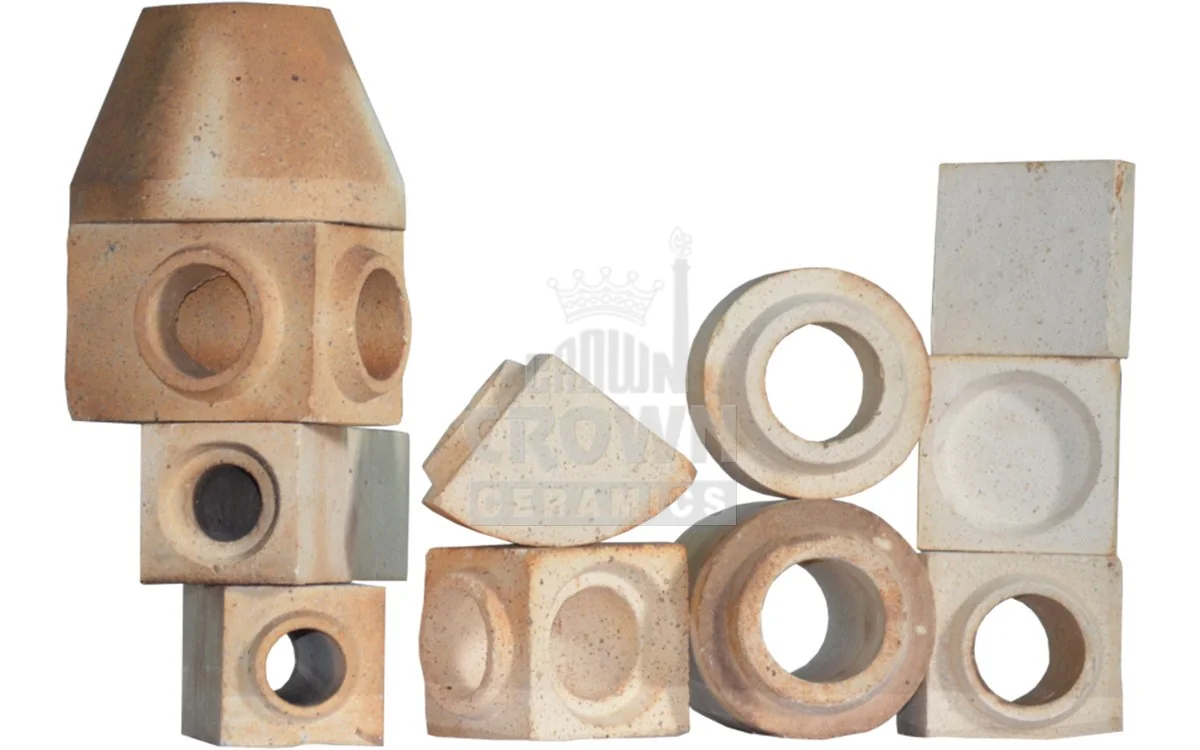

Components
Every piece in the set.
Fireclay and high alumina grades, pressed and fired in our own kilns. Special shapes to drawing.
01
Trumpet / Centre Runner
The vertical column the steel is teemed into. Banded, with a smooth bore to keep the stream steady.
BORE TO DRAWING
02
Centre Block
The hexagonal block that splits the flow from the trumpet into the runner channels.
MULTI-BORE
03
Runner Brick
Channel bricks that carry steel from the centre block to each mould.
STRAIGHT & BEND
04
Nozzle
Seats at the mould entry and sets the pouring rate. Made to your bore sizes.
BORE TO DRAWING
05

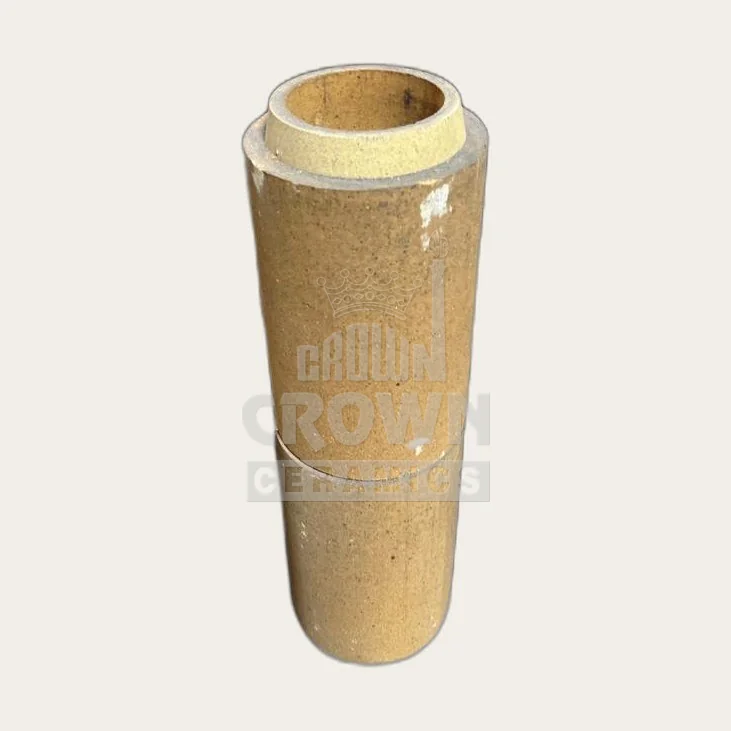

Sleeve
Tubular sleeves that line and protect the pouring column.
TUBULAR
06

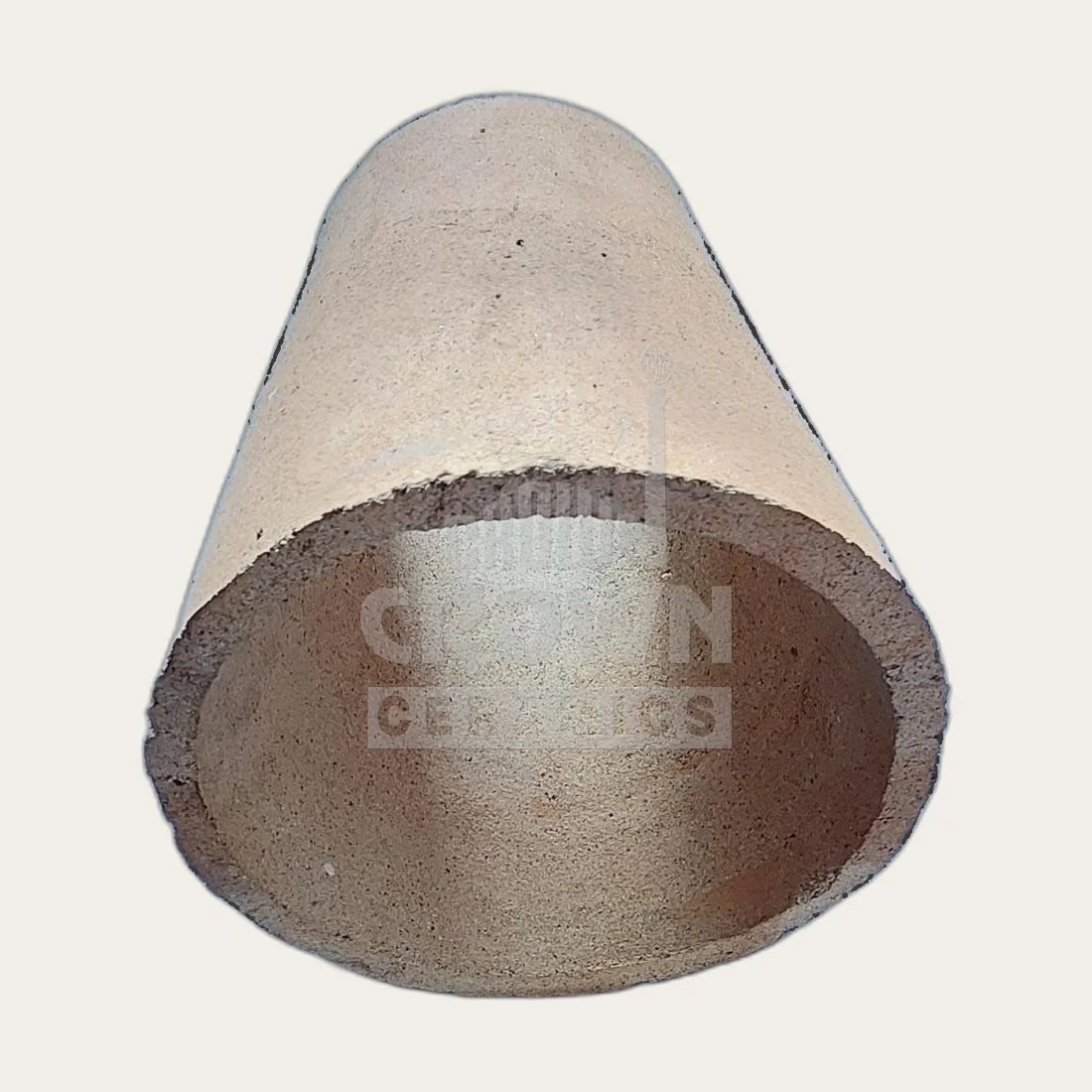

Tapered Sleeve
Cone-shaped section that steps the bore down towards the mould.
TAPERED
How to order
Ordering a set.
Send your plate layout, ingot size and the number of moulds per plate. We work out the piece list, confirm bore sizes and quote the complete set.
Send your layout
Grades40–72% Al₂O₃
Bore sizesTo drawing
Set contentsTrumpet · centre block · runners · nozzles · sleeves
PackingPalletised, marked by position
Lead time[confirm]
