High-alumina anchors and anchor bricks that hold castable and plastic linings in the hottest zones of reheating furnaces, boilers and heaters, where steel anchors cannot survive.
01
Beyond the limit of steel
In hot zones where metal anchors oxidise and lose strength, ceramic anchors carry the lining right up to the hot face.
02
Matched to the lining
High-alumina bodies in the same family as the castable, so the anchor and lining move together through heat cycles.
03
Made to your hanger system
Length, section, head and rib profile produced to your drawing, to suit clips, pins or cast hangers already on your furnace.
Range
Anchor types we make.
Anchor type01
Pin-Hole Head Anchors
A transverse hole through the head takes a steel pin or clevis hanger. The ribbed shank locks into the castable or plastic lining.
HeadPin hole Ø20 mm + neck
Standard lengths350 · 400 mm
Section125 × 100 mm
Grade42–92% Al₂O₃
Typical applicationsReheating and heat-treatment furnace roofs and walls, forge furnaces, heaters
Standard neck and neck-with-pin anchors in three lengths. Any other length, section or head is made to drawing.
Code
Type
Length
Section
Fixing
350SA
Neck + pin-hole anchor
350 mm
125 × 100 mm
Neck clip or Ø20 mm pin
400SA
Neck + pin-hole anchor
400 mm
125 × 100 mm
Neck clip or Ø20 mm pin
450S
Neck-groove anchor
450 mm
125 × 125 mm
Neck clip or hook
Custom
Any anchor or anchor tile
To drawing
To drawing
To your hanger system
From our production floor
Pressed, fired and palletised for site.

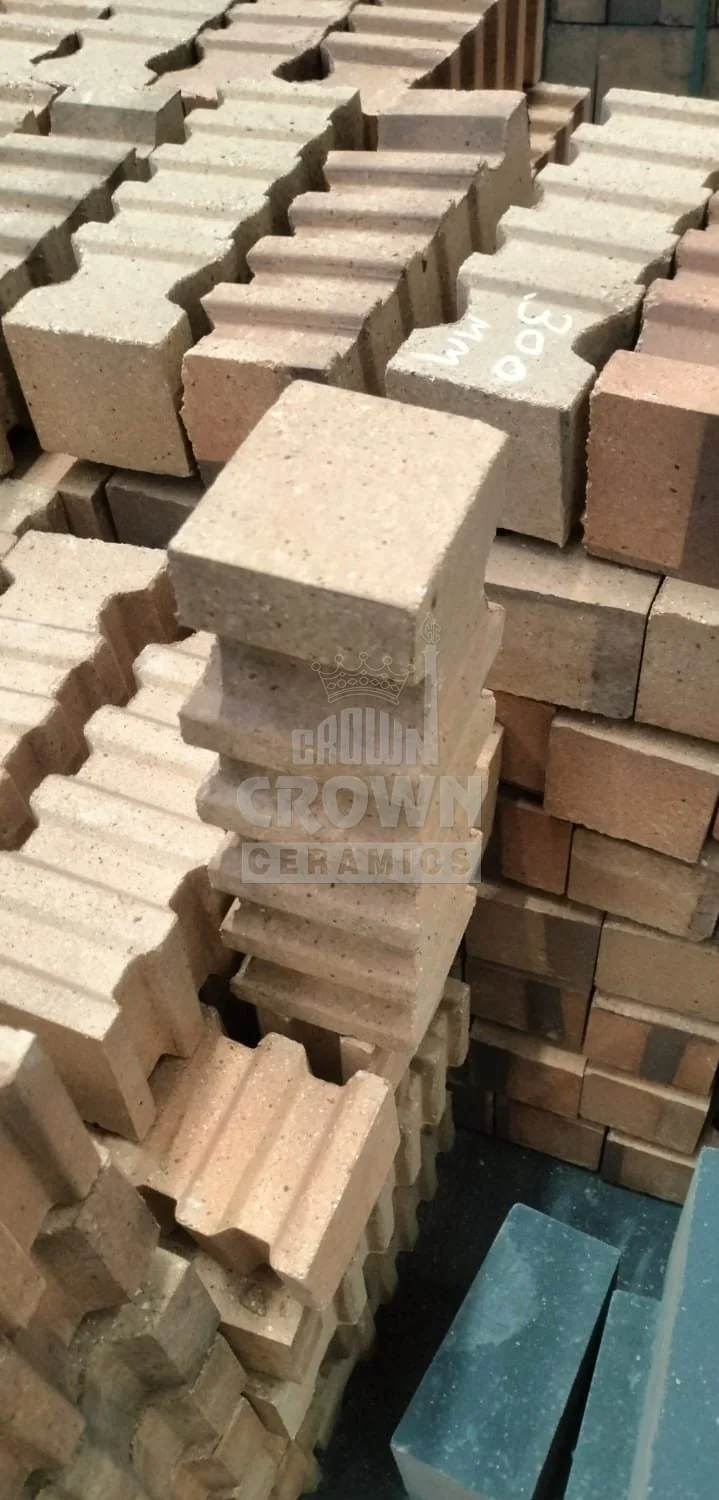

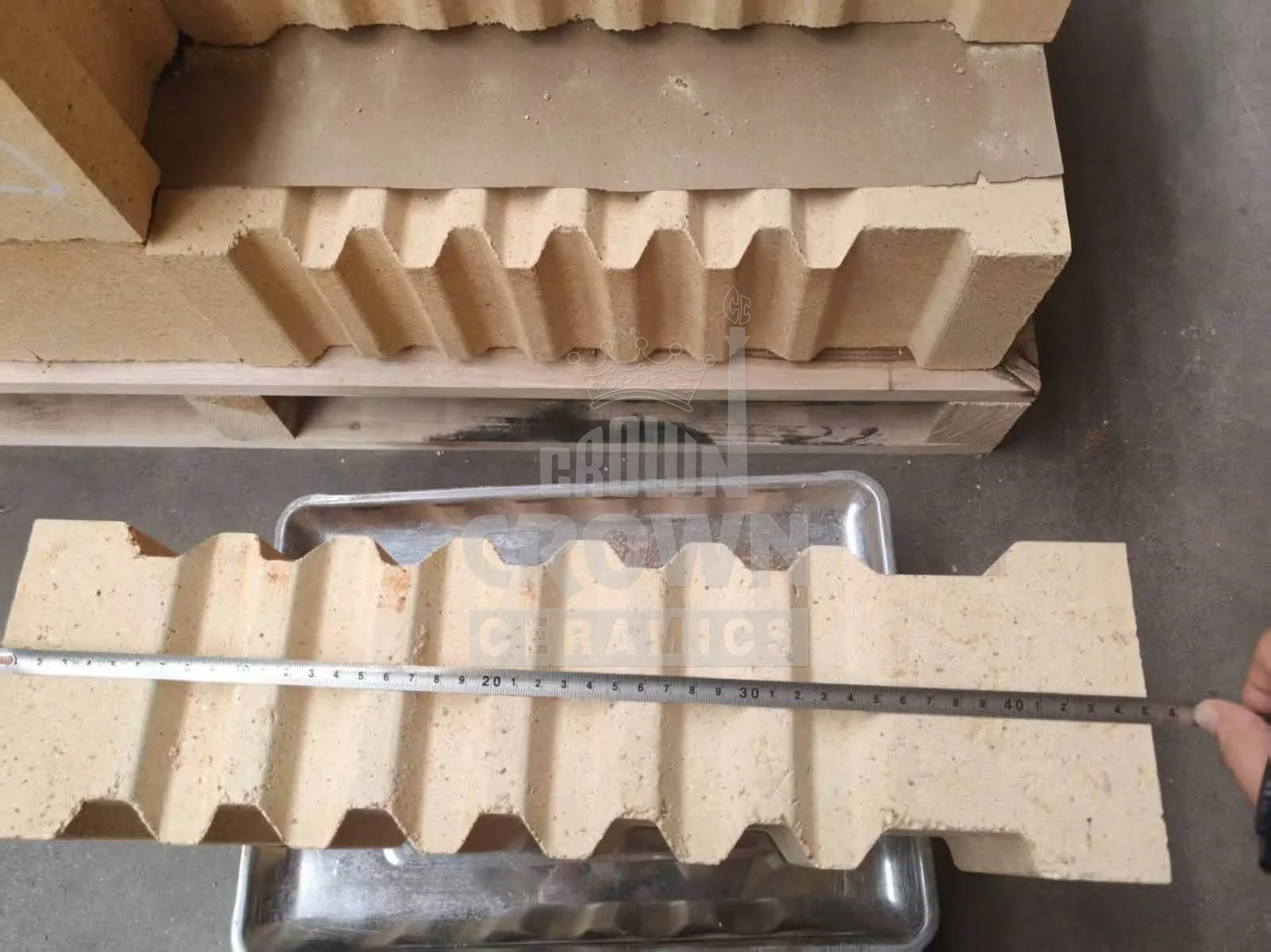

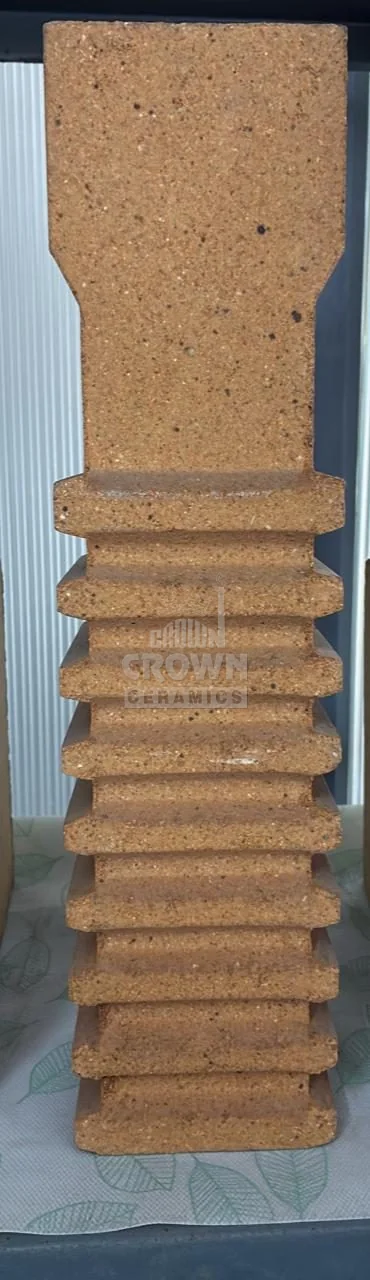

NECK-GROOVE ANCHORANCHORS IN STOCKANCHOR TILES, PALLETISEDDIMENSIONAL CHECKRIBBED KEYING FACE
In service
How a ceramic anchor holds the lining.
The hanger stays cool above the insulation. The ceramic anchor runs through to the hot zone, and its ribs lock the castable in place.
Supply
Built to your drawing.
Send us your anchor drawing or hanger details. We match length, section, head and rib profile, recommend the grade for your operating temperature, and supply with the lining castable if you need it.
